EdgeReinforcementRebarSyncLayout Struct Reference
Creating reinforcement styles » Layout types

Layout of reinforcement parts synchronously with the reinforcement bars of the mesh. More...

Public Member Functions

 EdgeReinforcementRebarSyncLayout (boolean placeBeforeRebar)
 Constructor.

Public Attributes

boolean PlaceBeforeRebar
 The position of the rebar relative to the mesh rebar. If set to true, it is placed first relative to the mesh rebar in the direction of the rebar layout (bottom to top or left to right); otherwise, it is placed after the mesh rebar.

Detailed Description

Layout of reinforcement parts synchronously with the reinforcement bars of the mesh.

Since
v4.2

Member Data Documentation

◆ PlaceBeforeRebar

boolean EdgeReinforcementRebarSyncLayout::PlaceBeforeRebar

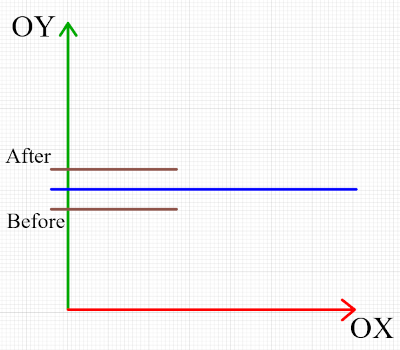

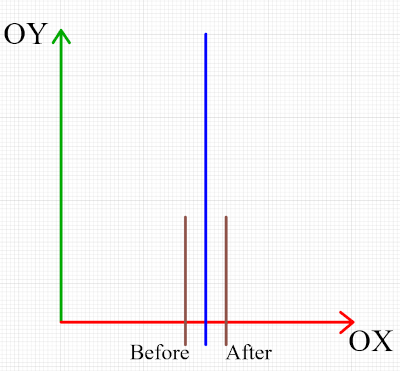

The position of the rebar relative to the mesh rebar. If set to true, it is placed first relative to the mesh rebar in the direction of the rebar layout (bottom to top or left to right); otherwise, it is placed after the mesh rebar.
