ReinforcementUnitGridInSectionParameters Struct Reference
Creating reinforcement styles » Reinforcement by units

Parameters of reinforcement unit grid layout in the section. A section is a geometric object formed by dissecting the object body by some surface. Currently, only a flat section is supported, which is automatically created when reinforcing the base layer of multilayer objects. More...

Public Member Functions

 ReinforcementUnitGridInSectionParameters (ReinforcementUnitGridParameters unitGridParameters)
 Constructor.

Public Attributes

ReinforcementUnitGridParameters UnitGridParameters
 Reinforcement unit grid parameters.
boolean UseRectangularApproximation
 Parameter controls the approximation of the reinforcement region and allows to replace sides that are not initially orthogonal to the section axes with orthogonal ones.

Detailed Description

Parameters of reinforcement unit grid layout in the section. A section is a geometric object formed by dissecting the object body by some surface. Currently, only a flat section is supported, which is automatically created when reinforcing the base layer of multilayer objects.

Since
v4.3

Member Data Documentation

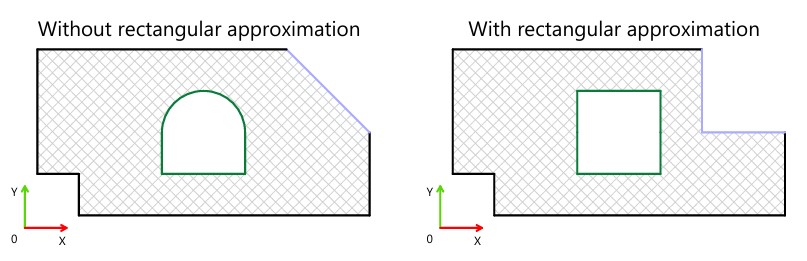

◆ UseRectangularApproximation

boolean ReinforcementUnitGridInSectionParameters::UseRectangularApproximation

Parameter controls the approximation of the reinforcement region and allows to replace sides that are not initially orthogonal to the section axes with orthogonal ones.
