ZonedRebarRowParameters Struct Reference

Parameters of zoned placement of rebar rows. Allows defining different rebar row parameters for each zone. Allows defining a variable count of zones at the beginning and end of the layout. It is necessary to define the size of each zone in millimeters. The size of the main zone is calculated automatically. More...

Public Member Functions
	ZonedRebarRowParameters (RebarRowParameters parameters)
	Constructor.

Public Attributes
table	StartZones
	The table of the pair of the rebar row parameters and the zone size at the beginning of the layout.
RebarRowParameters	MainRowParameters
	The rebar row parameters of the main zone.
table	EndZones
	The table of the pair of the rebar row parameters and the zone size at the end of the layout.
number	MinClearance
	Minimum clear spacing between reinforcing bars at zone boundaries, i.e. between the last rebar of every mesh and the first of the next. The parameter is optional, the default value is 25 mm.

Detailed Description

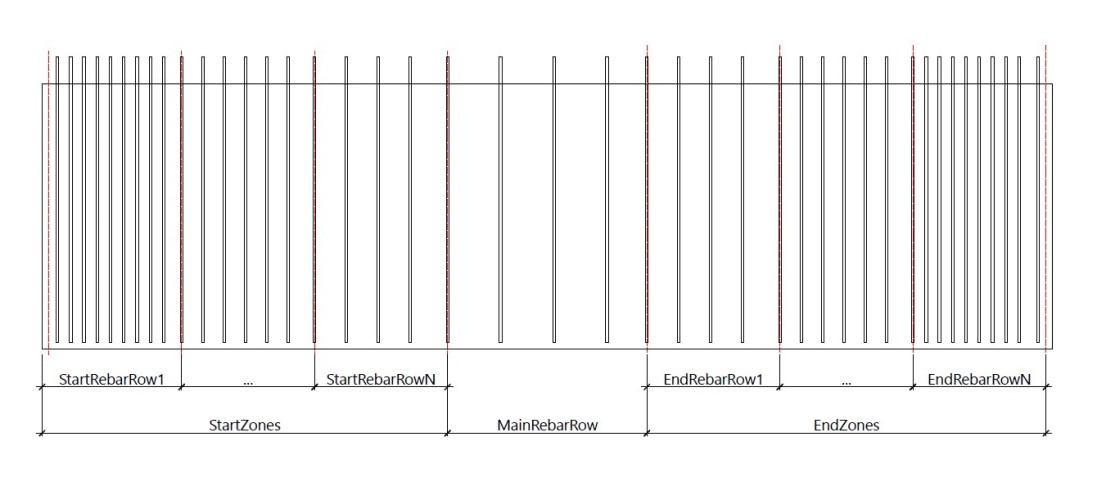

Parameters of zoned placement of rebar rows. Allows defining different rebar row parameters for each zone. Allows defining a variable count of zones at the beginning and end of the layout. It is necessary to define the size of each zone in millimeters. The size of the main zone is calculated automatically.

Since

v4.1

Constructor & Destructor Documentation

ZonedRebarRowParameters()

ZonedRebarRowParameters::ZonedRebarRowParameters

(

RebarRowParameters

parameters

)

Constructor.

Parameters

parameters

The main rebar row parameters.
