IRectBoundedObject Interface Reference

Represents a rect bounded object with content. More...

Public Member Functions
HRESULT	FitBoundsToContent ([in] double inset)
	Fits the bounding rect of the object to its content with specified inset.
HRESULT	GetContentPlacement ([out, retval] IPlacement2D **ppContentPlacement)
	Returns the copy of object's content placement in the Global Coordinate System if object has content, null otherwise.
HRESULT	SetContentPlacement ([in] IPlacement2D *pPlacement)
	Sets the object's content placement in the Global Coordinate System.

Properties
Rect	BoundRect [get, set]
	The bounding rect of the object in the Global Coordinate System.
VARIANT_BOOL	HasContent [get]
	Returns true if object has content, false otherwise.

Detailed Description

Represents a rect bounded object with content.

Use this interface to control the bounding rect and content placement for objects such as EmbeddedEntityView, EmbeddedModelView, EmbeddedSchedule, EmbeddedTable and EmbeddedLegend. This interface can be obtained as an additional interface from IModelObject.

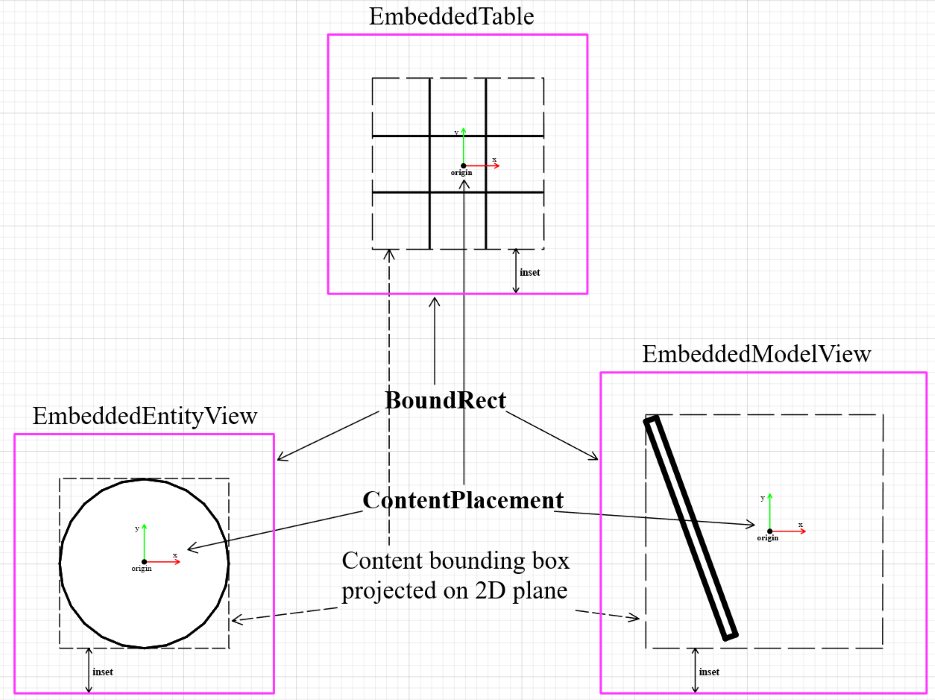

See image below for details:

See also

IModelObject, Rect

Member Function Documentation

FitBoundsToContent()

HRESULT FitBoundsToContent

(

[in] double

inset

)

Fits the bounding rect of the object to its content with specified inset.

After calling this method, BoundRect will be resized to exactly enclose the content, with the specified inset applied to each side.

Parameters

[in]

inset

The inset applied to the bounding rectangle around content.

See also

BoundRect

GetContentPlacement()

HRESULT GetContentPlacement

(

[out, retval] IPlacement2D **

ppContentPlacement

)

Returns the copy of object's content placement in the Global Coordinate System if object has content, null otherwise.

The origin of content placement is always located in the center of content bounding box projected on 2D plane.

Parameters

[out]

ppContentPlacement

The requested placement of the content.

See also

SetContentPlacement, HasContent, IPlacement2D

SetContentPlacement()

HRESULT SetContentPlacement

(

[in] IPlacement2D *

pPlacement

)

Sets the object's content placement in the Global Coordinate System.

Parameters

[in]

pPlacement

The new placement of the content.

See also

GetContentPlacement, HasContent, IPlacement2D

Property Documentation

BoundRect

Rect BoundRect

getset

The bounding rect of the object in the Global Coordinate System.

See also

FitBoundsToContent
