Wall Reinforcement Style Template

Let's learn how to create the template for the reinforcement style — Wall Double Mesh With Vertical Overhangs.

Technical Task

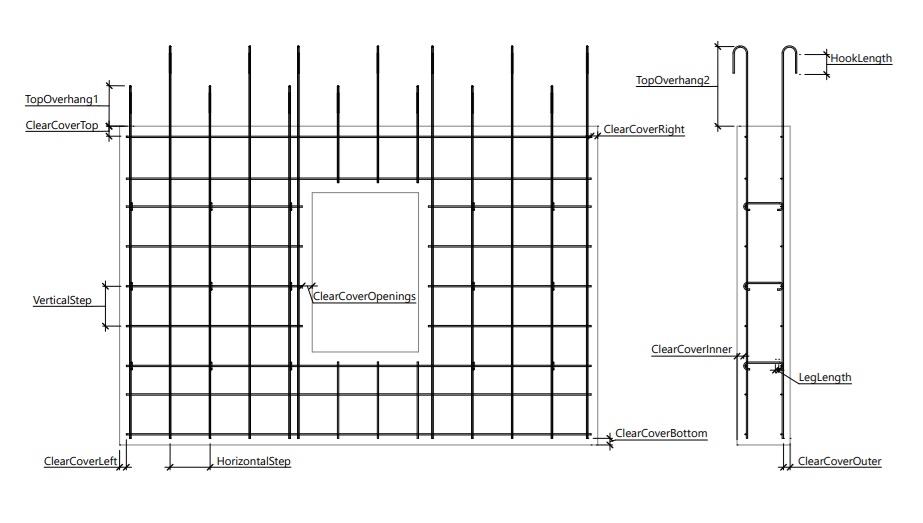

Before creating a style template, we will take a look at the technical task, according to which we will create a file of parameters in JSON format and write a script in Lua.

Group/Parameter	Description	Type	Default	Min	Max
ClearCover	ClearCover
ClearCoverInner	Inner	Length	20	0	100
ClearCoverOuter	Outer	Length	20	0	100
ClearCoverLeft	Left	Length	20	0	100
ClearCoverRight	Right	Length	20	0	100
ClearCoverTop	Top	Length	20	0	100
ClearCoverBottom	Bottom	Length	20	0	100
ClearCoverOpenings	For door and window	Length	25	0	100
LongitudinalRebar	Longitudinal rebar
RebarStyleId	Style	Id
Step	Step	Length	300	50	500
TransverseRebar	Transverse rebar
RebarStyleId	Style	Id
Step	Step	Length	300	50	500
Overhang	Overhangs
UseHook	Use hook	Boolean	true
TopOverhang1	Top overhang 1	Length	300	0	1000
TopOverhang2	Top overhang 2	Length	600	0	1000
HookLength	Hook length	Length	150	0	500
CShapedFixator	C-shaped fixator
RebarStyleId	Style	Id
LegLength	Leg length	Length	15	0	100
HorizontalStep	HorizontalStep	Length	2	1	10
VerticalStep	Vertical step	Length	2	1	10
UseChessOrder	Use chess order	Boolean	false

Parameters Description File

According to the technical task, we create a parameters file using the structure detailed in the Style Templates of Reinforcement Units.

See the resulting file in the parameters file.

Script

Setting up the parameters states in the reinforcement style editor

To set up the reinforcement style parameters, use SetStyleParameterStates(). An instance of the ParameterContainer() class is passed to this function. This instance we use to hide or show the HookLength parameter, depending on the value of the UseHook parameter.

function SetStyleParameterStates(parameters)
    local values = parameters:GetParameterValues()

    -- Hide or show the HookLength parameter, depending on the value of the UseHook parameter.
    parameters:GetParameter("Overhang", "HookLength"):SetVisible(values.Overhang.UseHook)
end

Creating reinforcement

The mesh should consist of a row of longitudinal rebars and a row of transverse rebars. User will set the reinforcement style and step for both rows. Let's create a function that we will use for the rows:

function rebarRowParameters(group)
    local rebarStyleId = group.RebarStyleId
    local layout = RebarRowEdgeProtectionLayout(group.Step)
    return RebarRowParameters(rebarStyleId, layout)
end

The transverse rebars should have top overhangs with the possibility of specifying their length and the option of using a hook. Let's create a function to specify overhang rules using the RebarOverhangParameters constructor:

function createOverhangRules(styleParameters, hookAngle)
    local overhangValues = {
        styleParameters.Overhang.TopOverhang1,
        styleParameters.Overhang.TopOverhang2
    }

    -- If the user will use a hook
    if styleParameters.Overhang.UseHook then
        local hook = RebarHookParameters(
            math.pi,
            styleParameters.Overhang.HookLength,
            hookAngle
        )
        local overhang = RebarOverhangParameters(overhangValues, hook)
        return {{ObjectSideSelector(WallSide.Top), overhang}}
    else
        -- If the user will not use a hook
        local overhang = RebarOverhangParameters(overhangValues)
        return {{ObjectSideSelector(WallSide.Top), overhang}}
    end
end

Using the DoubleReinforcingMeshParameters structure, we specify the parameters for creating two reinforcement meshes:

function meshParameters(styleParameters)
    local longitudinalParams = rebarRowParameters(styleParameters.LongitudinalRebar)

    -- Front mesh (inner, hook rotation angle is 180°)
    local transFront = rebarRowParameters(styleParameters.TransverseRebar)
    transFront.OverhangRules = createOverhangRules(styleParameters, math.pi)

    -- Back mesh (outer, hook rotation angle is 0°)
    local transBack = rebarRowParameters(styleParameters.TransverseRebar)
    transBack.OverhangRules = createOverhangRules(styleParameters, 0)

    -- Meshes
    local frontMesh = ReinforcingMeshParameters(longitudinalParams, transFront)
    local backMesh = ReinforcingMeshParameters(longitudinalParams, transBack)

    -- C-shaped rebar (Length = 1 for auto-tuning)
    local cShaped = CShapedRebarParameters(
        styleParameters.CShapedFixator.RebarStyleId,
        1,
        styleParameters.CShapedFixator.LegLength
    )

    -- Rebar mesh supports layout with setting the number of cells passed between the elements
    local layout = ReinforcingMeshSupportsCellLayout(
        styleParameters.CShapedFixator.HorizontalStep,
        styleParameters.CShapedFixator.VerticalStep
    )

    -- If the user will use chess order
    if styleParameters.CShapedFixator.UseChessOrder then
        layout.Displacements = {1, 0}
    end

    -- Reinforcing mesh supports
    local supports = ReinforcingMeshSupportsParameters(cShaped, layout)

    -- Double reinforcing mesh with supports
    local doubleMesh = DoubleReinforcingMeshParameters(frontMesh, backMesh)
    doubleMesh.Supports = supports

    return doubleMesh
end

Using the CreateObjectReinforcement() function, we apply reinforcement to the object and consider the protective layers.

function CreateObjectReinforcement(object, styleParameters)
    -- Защитные слои
    local clearCoverRules = {
        {ObjectSideSelector(WallSide.Front), styleParameters.ClearCover.ClearCoverInner},
        {ObjectSideSelector(WallSide.Back), styleParameters.ClearCover.ClearCoverOuter},
        {ObjectSideSelector(WallSide.Left), styleParameters.ClearCover.ClearCoverLeft},
        {ObjectSideSelector(WallSide.Right), styleParameters.ClearCover.ClearCoverRight},
        {ObjectSideSelector(WallSide.Top), styleParameters.ClearCover.ClearCoverTop},
        {ObjectSideSelector(WallSide.Bottom), styleParameters.ClearCover.ClearCoverBottom},
        -- Защитные слои для окон и дверей
        {VoidingSelector(ModelObjectType.Window), styleParameters.ClearCover.ClearCoverOpenings},
        {VoidingSelector(ModelObjectType.Door), styleParameters.ClearCover.ClearCoverOpenings}
    }

    return CreateDoubleReinforcingMeshInBaseLayer(
        object,
        clearCoverRules,
        meshParameters(styleParameters)
    )
end

For a full style template sample, see link.
